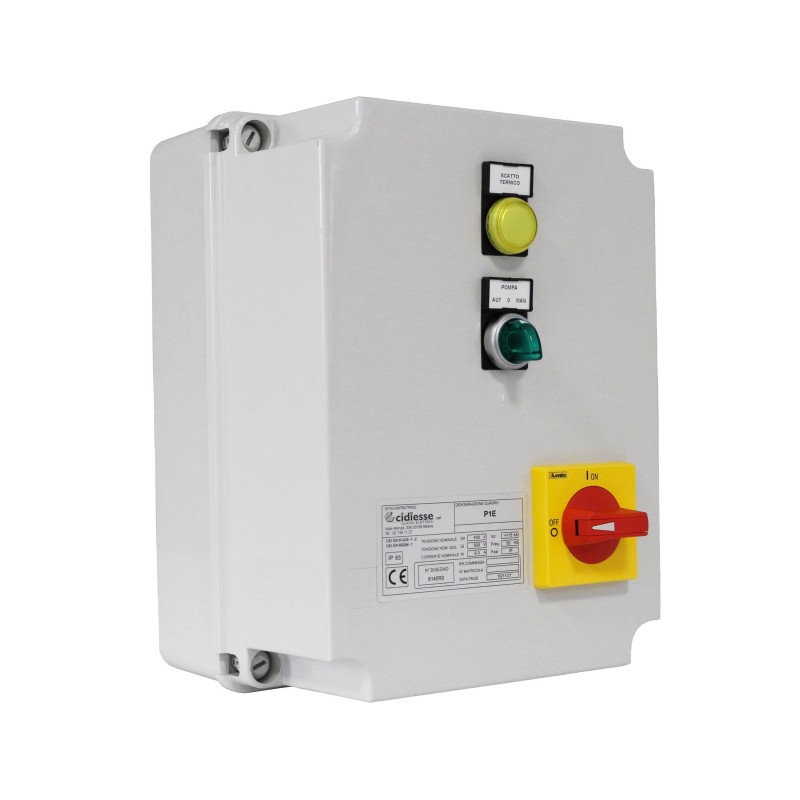

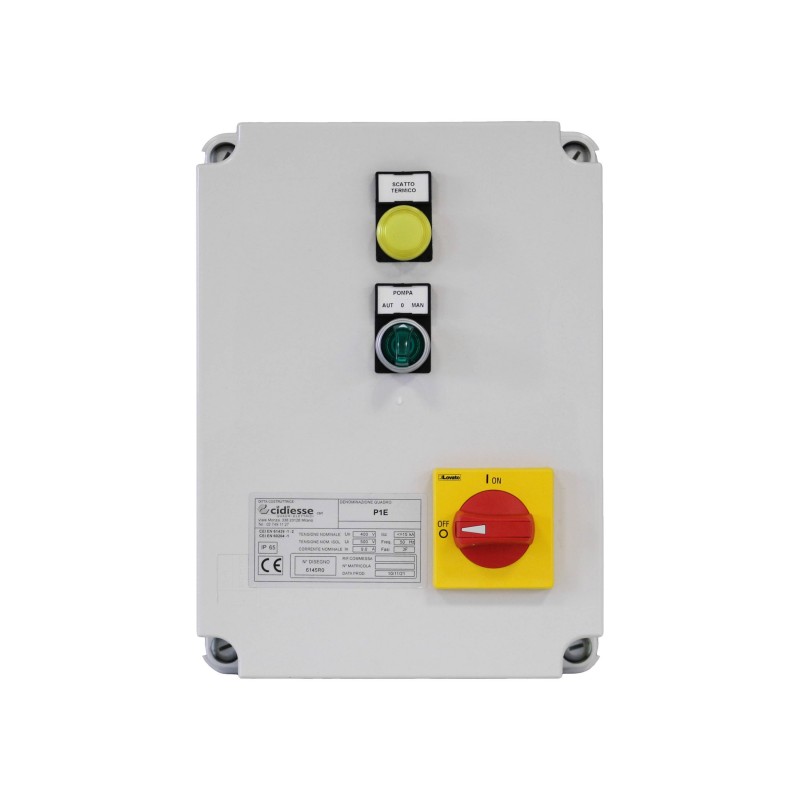

plastic box RAL 7035 IP56
general switch with door interlock
single-phase power supply 230V 50 / 60Hz
powers up to 1.1, kW
transformer for 24 V ac auxiliary circuit
primary and secondary protection fuses

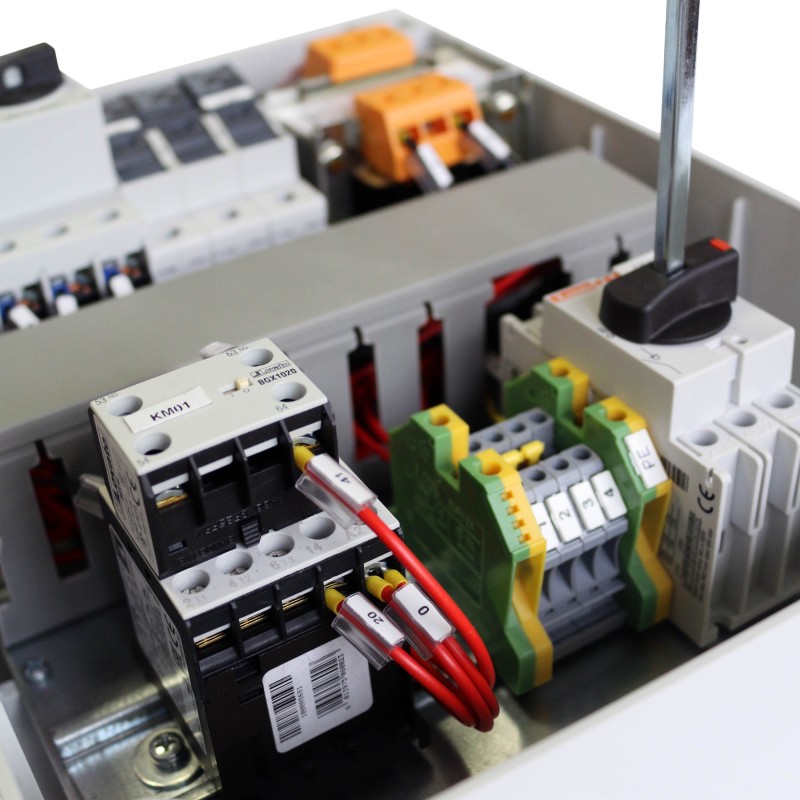

motor starting contactor
pump protection with magnetothermic motor protectors

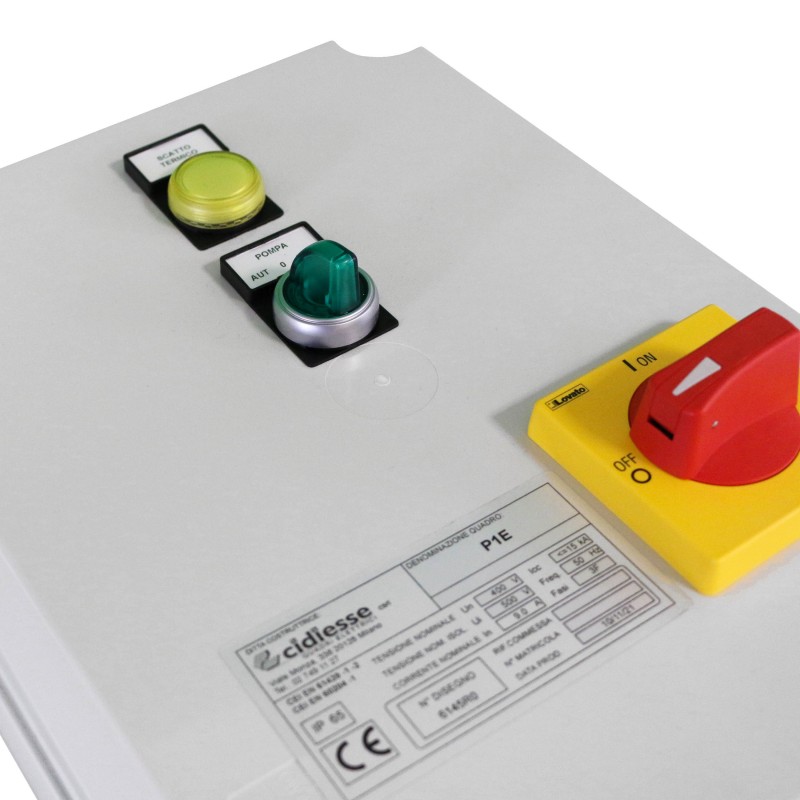

selector for MAN-0-AUT command, pump running
running and engine failure warning lights
clamps for connecting 2 floats
level control for pump running
level control for pump stop
operating temperature -5 ° / + 40 ° C
floats not supplied
P1E-M-01-H

Specific References

Schema
6804R0

Download

SCHEMA P1E-M

Download (309.29k)
