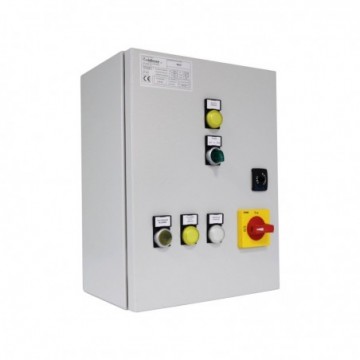

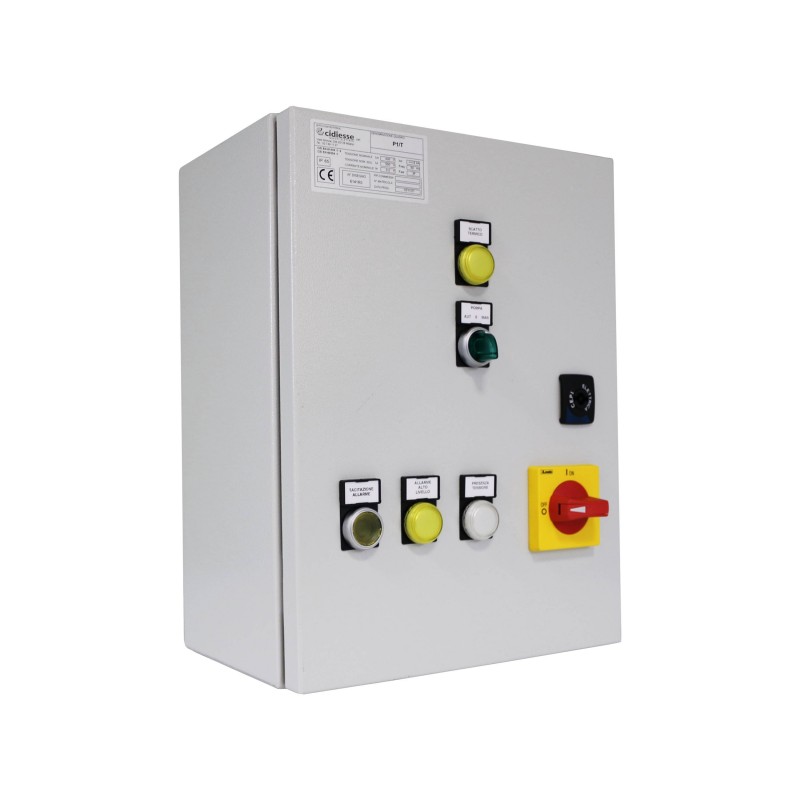

Control panel metal for well 1 pump single-phase from 0.37 to 1.1kW

€249.00

Tax excluded

Standard S version electromechanical panel, for the control and protection of a submersible or surface pump, single-phase 230V, with direct starting, usable for clear water wells, sewer drainage, artesian wells.It has a switch disconnector with door lock, a manual-0-automatic start light selector and external low voltage devices such as: float or other type level regulators (not supplied)Front panel light signals: voltage presence, in operation, thermal trip, high level alarm.Clean terminals available for remote pump failure signaling and high level alarm, predisposition for external acoustic alarm 24V ac (not supplied) with silencing button.

Select the Power and the Thermal:

Power - Thermal

Quantity

Security policies

Secure transactions with SSL protocol

Shipping policies

Preparation in 3/4 working days and delivery in 3/5 working days

Returns policies

You can return products if product was defective or in warranty

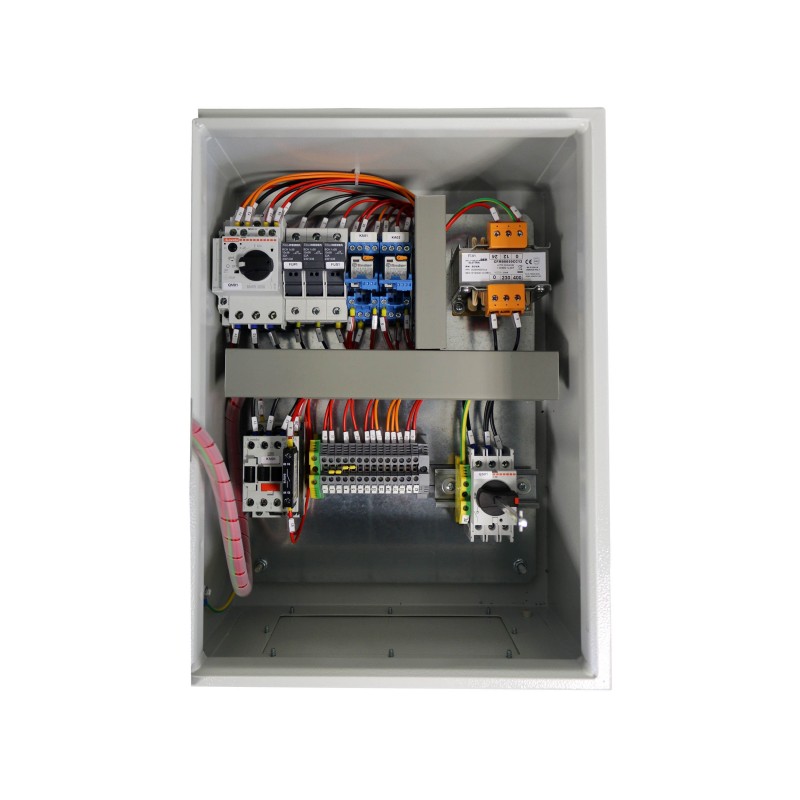

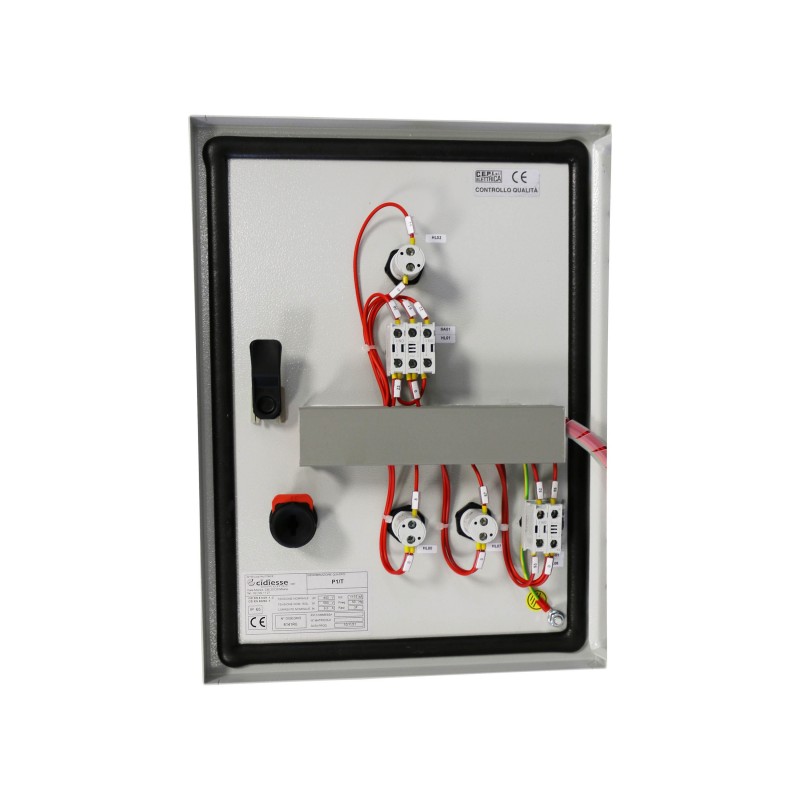

RAL 7035 IP 65 metal carpentry
general switch with door interlock
single-phase power supply 230V 50/60 Hz
powers up to 1.1 kW
transformer for auxiliary circuit 24V ac
primary and secondary protection fuses
motor starting contactor
pump protection with magnetothermic motor protectors
selector for MAN-0-AUT command, pump running
voltage presence indicator
running and engine failure warning lights
high level warning light
alarm silence button
terminals for connection of 4 floats
level control for pump running
level control for pump stop
dry running protection level control

Reference P1S-M-01-H

Specific References

Schema: 6794R0

Download

SCHEMA P1S-M

Download (441.23k)
