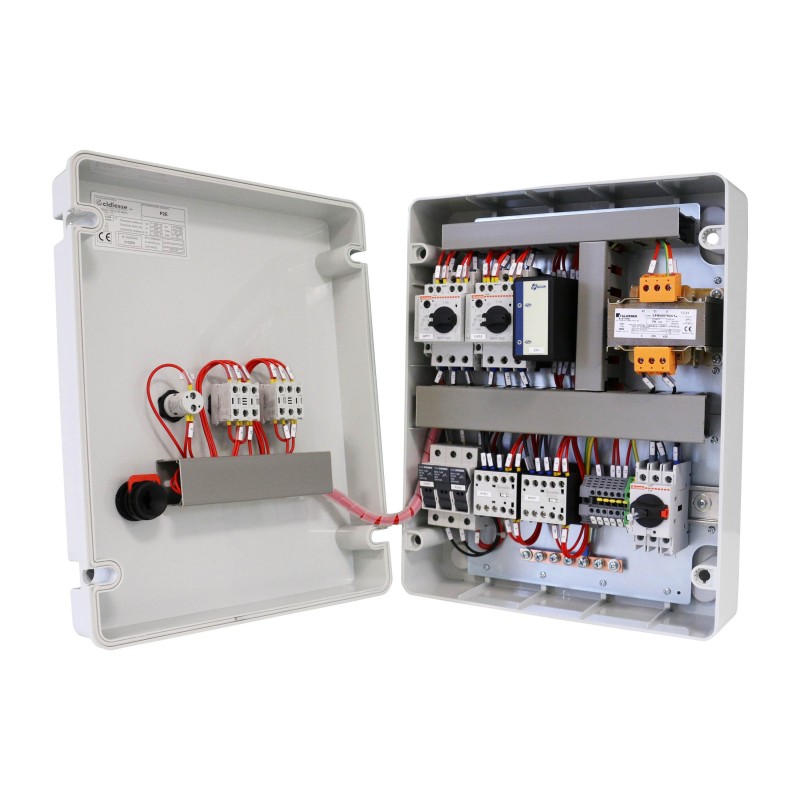

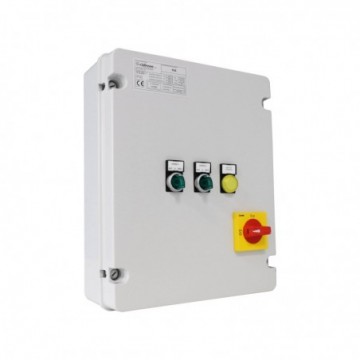

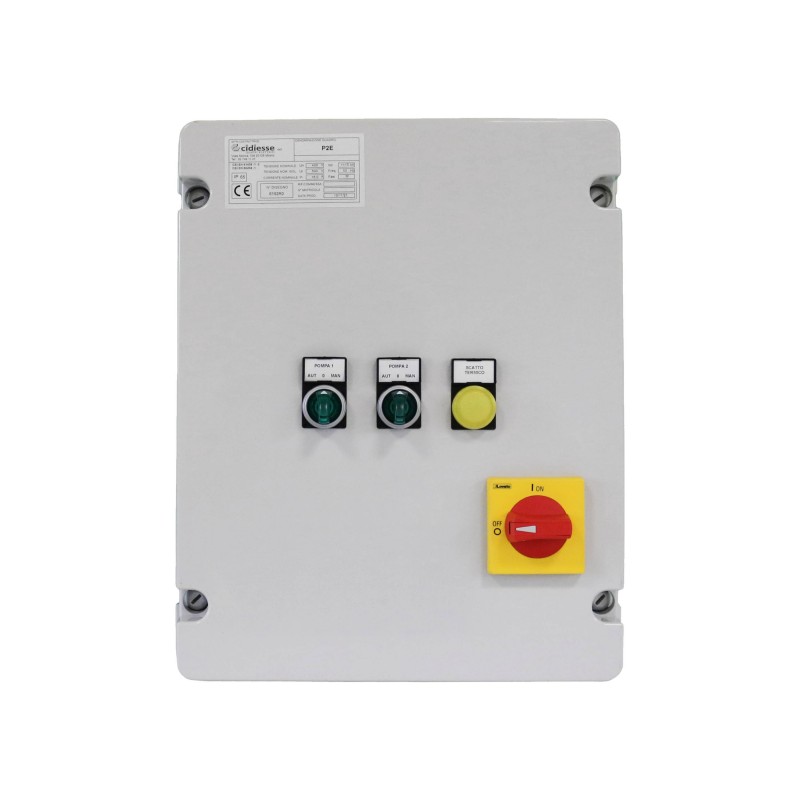

Control panel plastic for well 2 pumps three-phase from 0.37 to 4kW

plastic box RAL 7035 IP56
general switch with door interlock
single-phase power supply 230V 50 / 60Hz
powers up to 1.1 kW
transformer for 24 vac auxiliary circuit
primary and secondary protection fuses
contactors for starting motors
pump protections with magnetothermic motor protectors
selectors for MAN-0-AUT control, pumps running
electronic relay alternation pumps
parallel running pumps
running and engine failure warning lights
clamps for connecting 3 floats
level control for pump running
level control for running stop
level control for parallel running pumps
operating temperature -5 ° / + 40 ° C
alarm silence button
clamps for connecting 5 floats
level control for pump running
level control for pump stop

RAL 7035 IP 65 metal carpentry
general selector with door lock
three-phase power supply 400V 50/60 Hz powers up to 7.5kw
transformer for auxiliary circuit 24V ac
primary and secondary protection fuses
motor starting contactor
pump protection with magnetothermic motor protectors
selector for MAN-0-AUT command, pump running
voltage presence indicator
running and engine failure warning lights
high level warning light
alarm silence button
terminals for connection of 4 floats
level control for pump running
level control for pump stop
dry running protection level control
