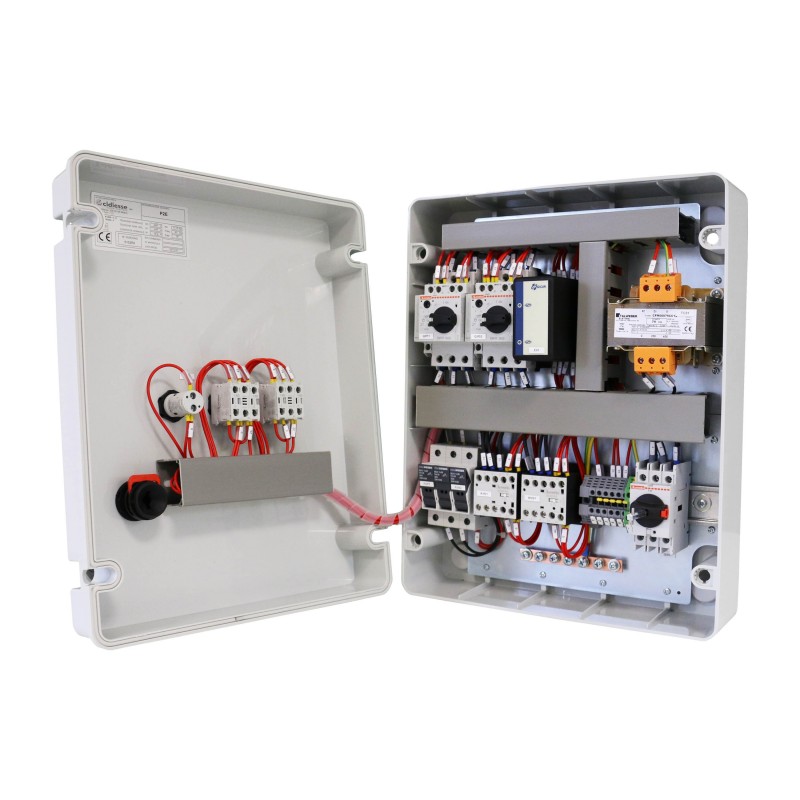

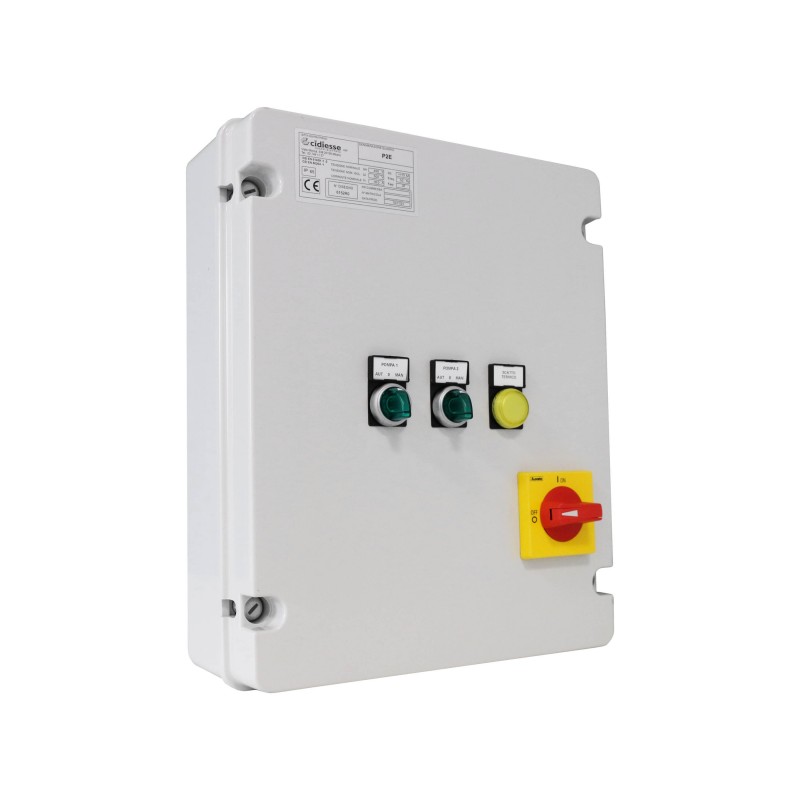

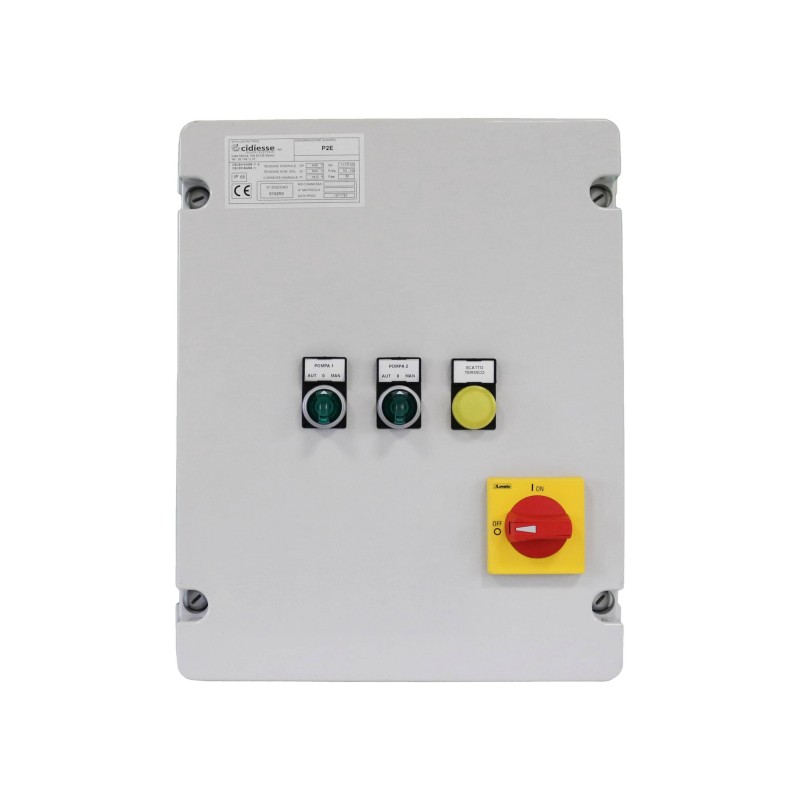

Control panel plastic for well 2 pumps single-phase from 0.37 to 1.1kW

€317.00

Tax excluded

E version Economic electromechanical panel, for the control and protection of two submersible or surface pumps, alternating and parallel, single-phase 230V, with direct starting, usable for clear water wells, sewer drainage, artesian wells.It has a switch disconnector with door lock, two manual-0-automatic start light selectors and external low voltage devices such as: float or other type level regulators (not supplied).Light signals on the front of the panel: pumps running, cumulative thermal trip.

Select the Power and the Thermal:

Power - Thermal

Quantity

Security policies

Secure transactions with SSL protocol

Shipping policies

Preparation in 3/4 working days and delivery in 3/5 working days

Returns policies

You can return products if product was defective or in warranty

plastic box RAL 7035 IP56
general switch with door interlock
single-phase power supply 230V 50 / 60Hz
powers up to 1.1 kW
transformer for 24 vac auxiliary circuit
primary and secondary protection fuses
contactors for starting motors
pump protections with magnetothermic motor protectors
selectors for MAN-0-AUT control, pumps running
electronic relay alternation pumps
parallel running pumps
running and engine failure warning lights
clamps for connecting 3 floats
level control for pump running
level control for running stop
level control for parallel running pumps
operating temperature -5 ° / + 40 ° C
alarm silence button
clamps for connecting 5 floats
level control for pump running
level control for pump stop

Reference P2E-M-01-H

Specific References

Schema: 6824R0

Download

SCHEMA P2E-M

Download (297.79k)
