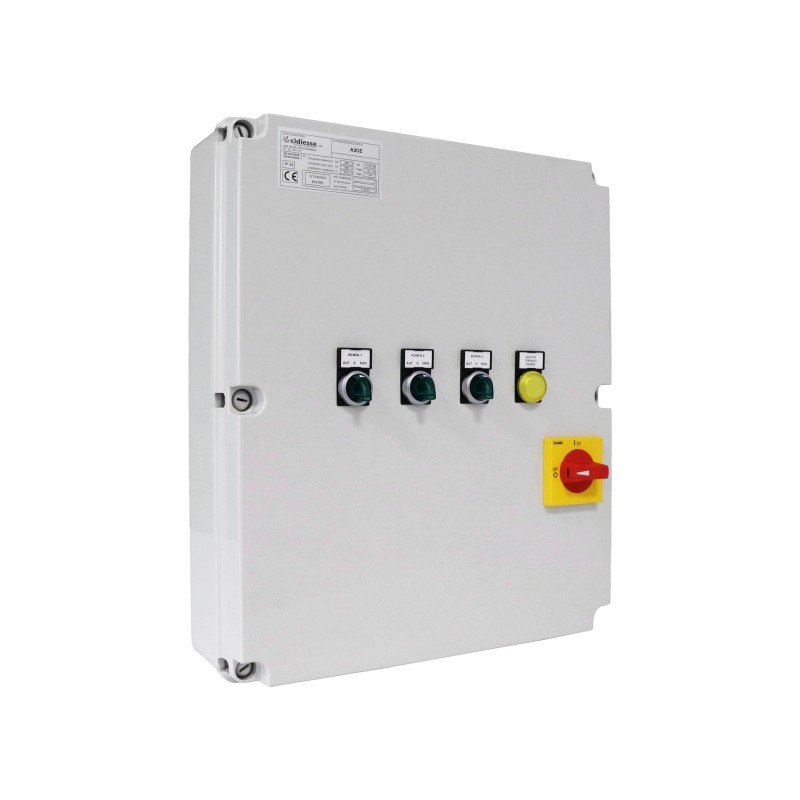

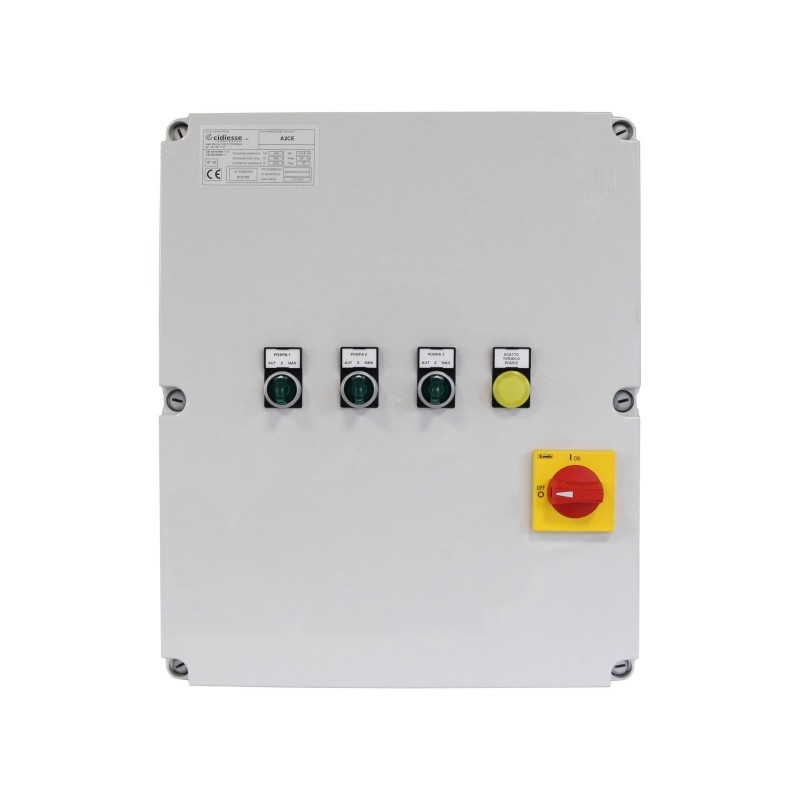

plastic box RAL 7035 IP56General disconnector with door interlock
Three-phase power supply 400V 50/60 Hz
Power up to 4 kW
Transformer for 24 Vac auxiliary circuit
Primary and secondary protection fuses

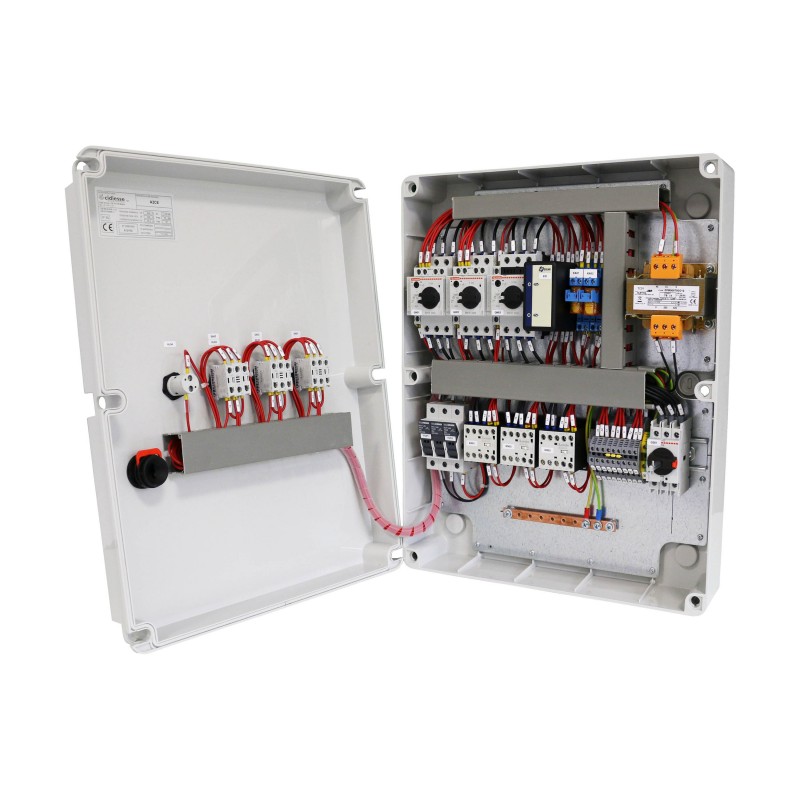

Contactors for starting motors
Motor protections with magne totermic motor protectors
Compressor switch-off daily clock

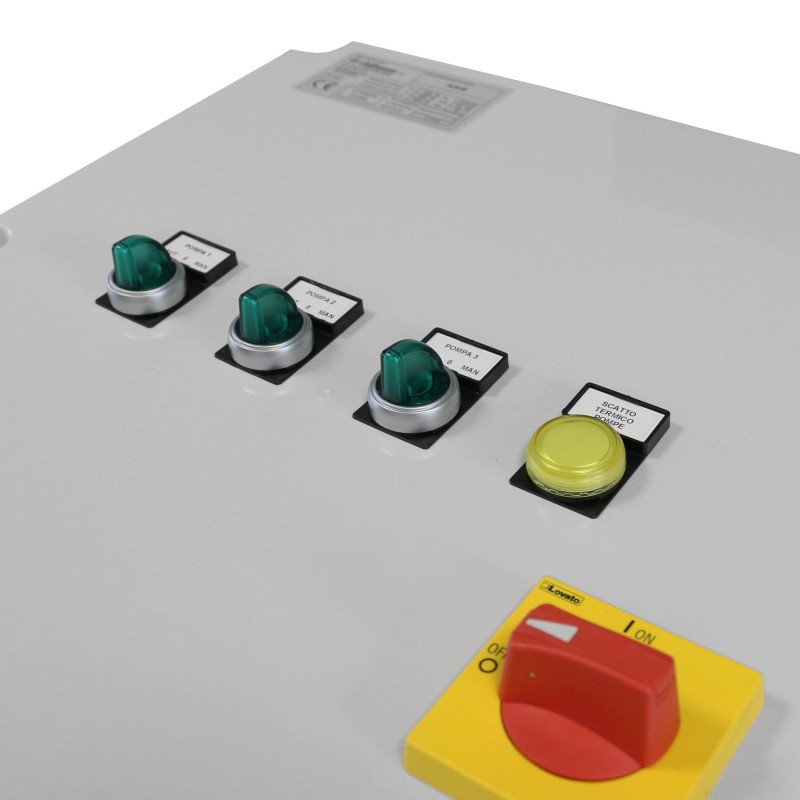

MAN-0-AUT control selectors, pumps running
MAN-0-AUT selector, compressor running
Electronic pump alternation relay
Parallel running pumps
Voltage presence indicator
Running and engine failure warning lights
Alarm silence button
Terminals for connection of 4 pressure switches:
Pressure switch for pump running
Pressure switch for pump stop
Pressure switch for parallel operation
Clamps for autoclave level floats
Clamps for pre-autoclave level floats
Operating temperature -5 / + 40 ° C
Pressure switches and floats not supplied
A2C-E-T-04-F-T-G

Specific References

Schema
6873R0

Download

SCHEMA A2CE-T

Download (514.1k)
