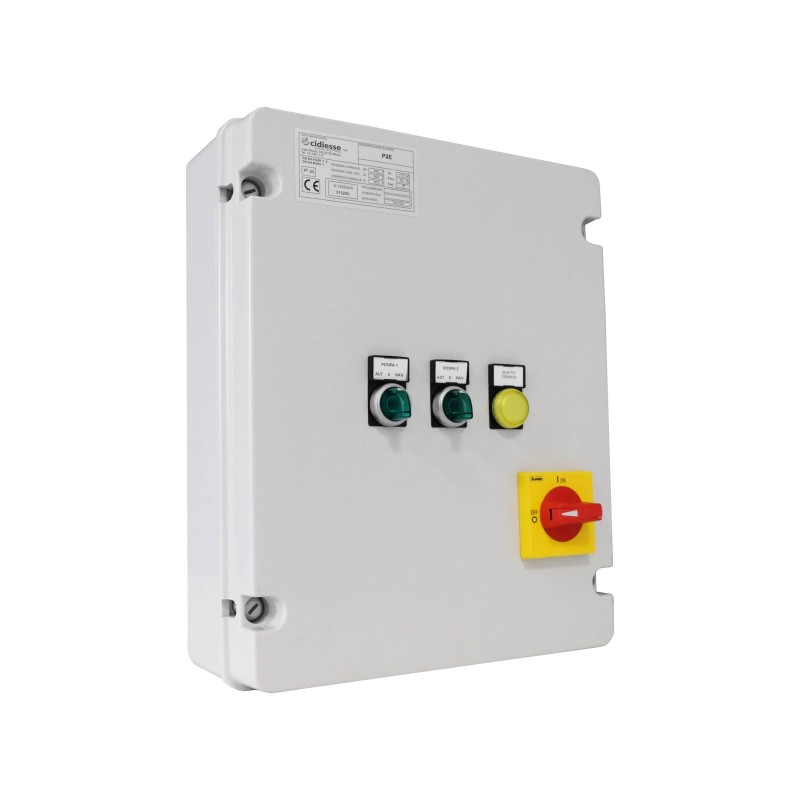

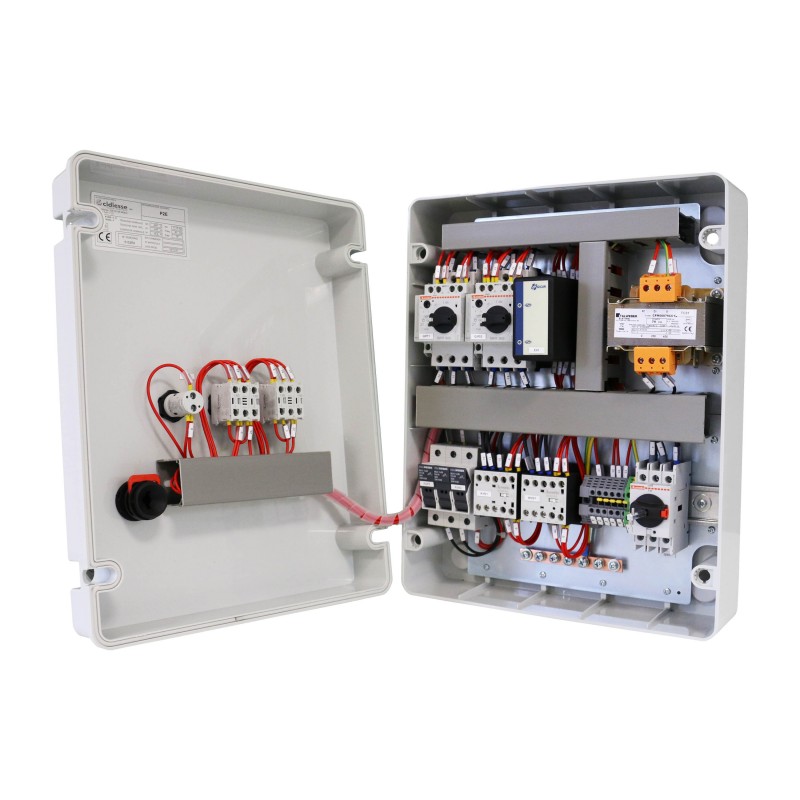

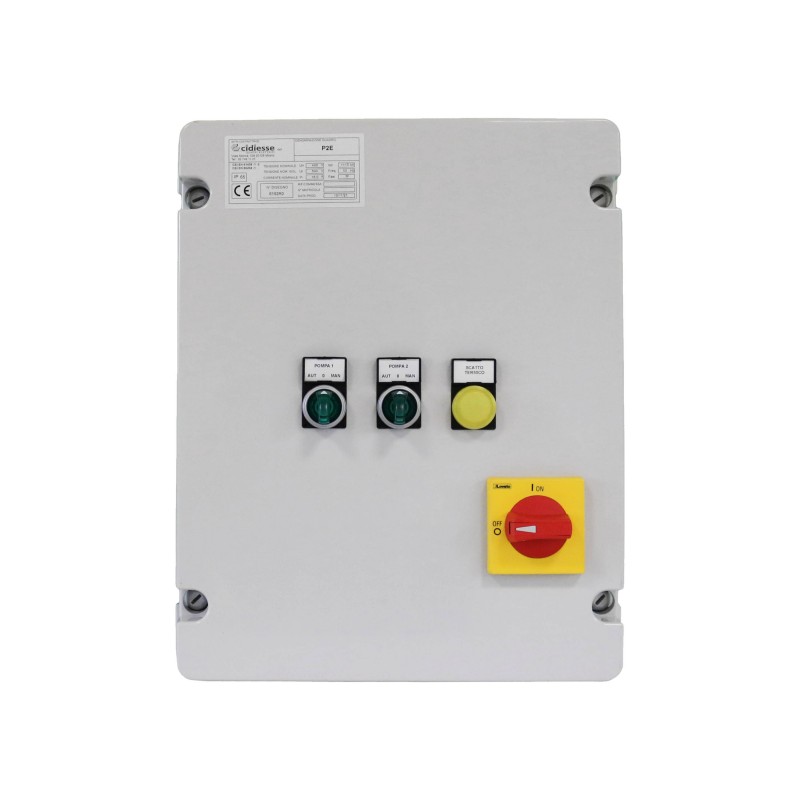

Control panel for single-phase plastic autoclave pumps from 0.37 to 1.1kW

€317.00
Tax excluded
E version electromechanical panel Economical, for the control and protection of two pumps for pressurization, alternating and in parallel, single-phase 230V, with direct starting, usable for pumping units and autoclaves for civil and industrial use.It has a switch disconnector with door lock, two manual-0-automatic start light selectors and external low voltage devices such as: pressure switches (not supplied)Light signals on the front of the panel: pumps running, cumulative thermal trip.
Select the Power and the Thermal:
Power - Thermal
Quantity

  Security policies

Secure transactions with SSL protocol

  Shipping policies

Preparation in 3/4 working days and delivery in 3/5 working days

  Returns policies

You can return products if product was defective or in warranty

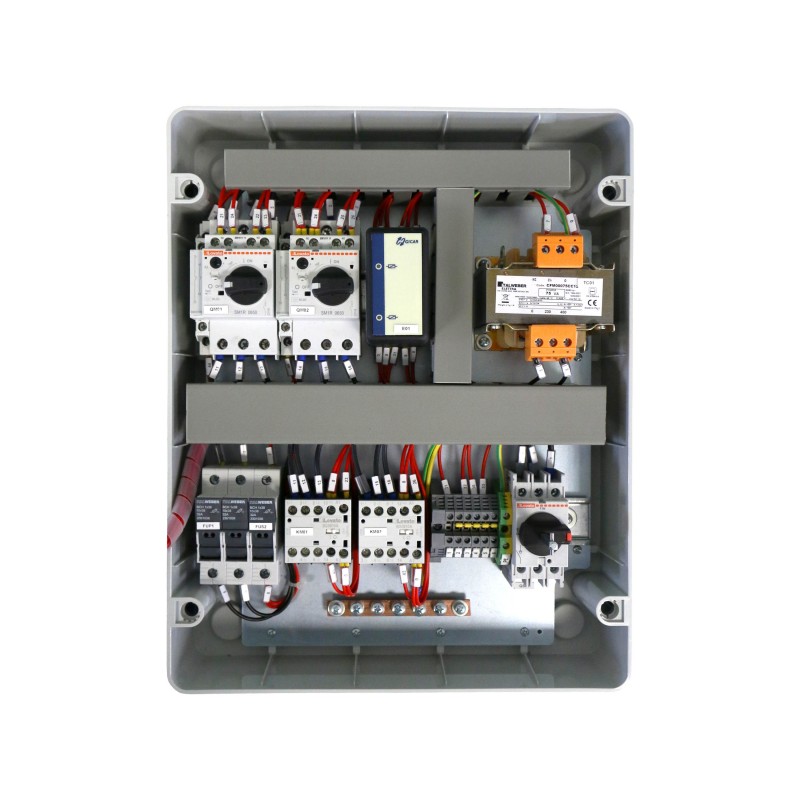

RAL 7035 IP 65 metal carpentry

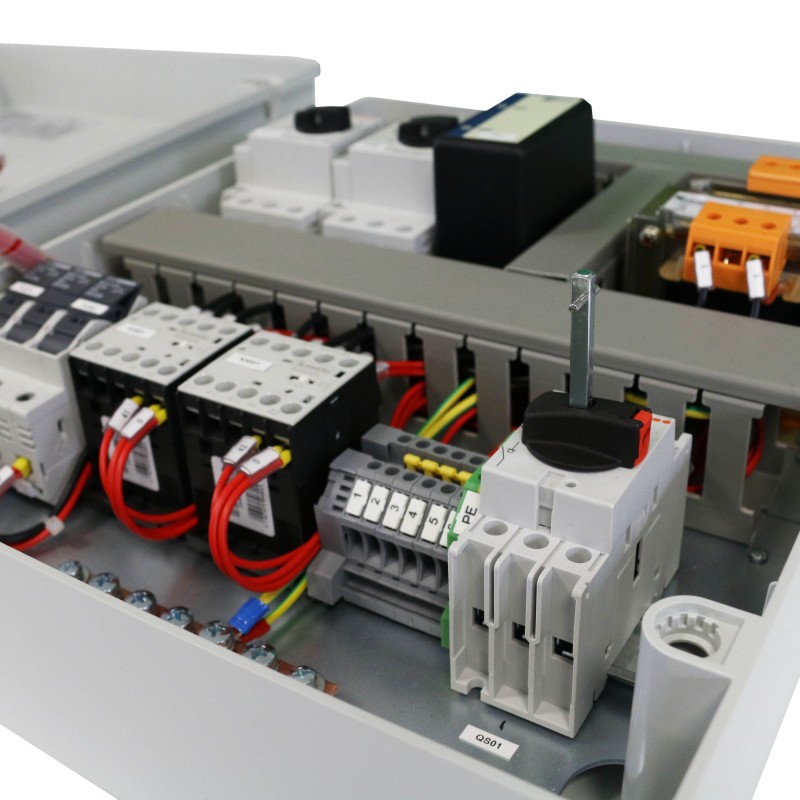

general switch with door interlock
single-phase power supply 230V 50 / 60Hz
powers up to 1.1 kW
transformer for 24 vac auxiliary circuit
primary and secondary protection fuses
contactors for starting motors
pump protections with magnetothermic motor protectors

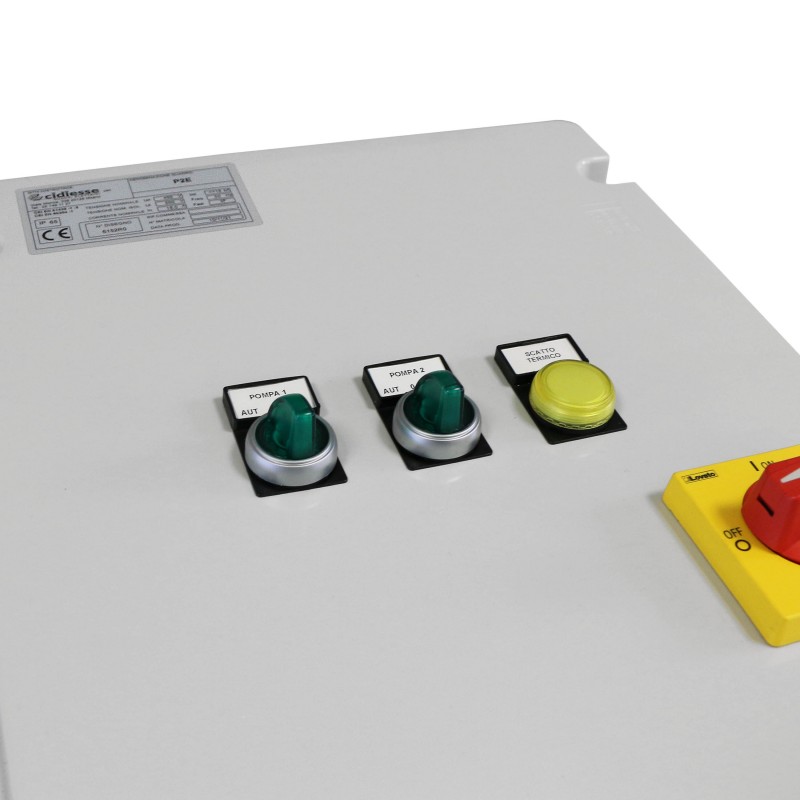

selectors for MAN-0-AUT control, pumps running
electronic relay alternation pumps
parallel running pumps
running and engine failure warning lights
terminals for connection of 3 pressure switches
pressure switch for pump running
pressure switch for pump stop
pressure switch for parallel operation
operating temperature -5 ° / + 40 ° C
floats not supplied
A2E-M-01-H

Specific References

Schema
6853R0

Download

SCHEMA A2EM

Download (355.37k)
